12.8V 135Ah LiFePO4 Battery 1728Wh

Price
$0.00
$429.99
Save  0%
Ship To
Please select a ship to
Quantity
SKU: US-12.8V-135AH
Fast Delivery & Outstanding Service
Top Protection & 8 Times Lifespan
Half Lightweight And Twice Capacity
4-Year Warranty & 24 Hours Timely Service

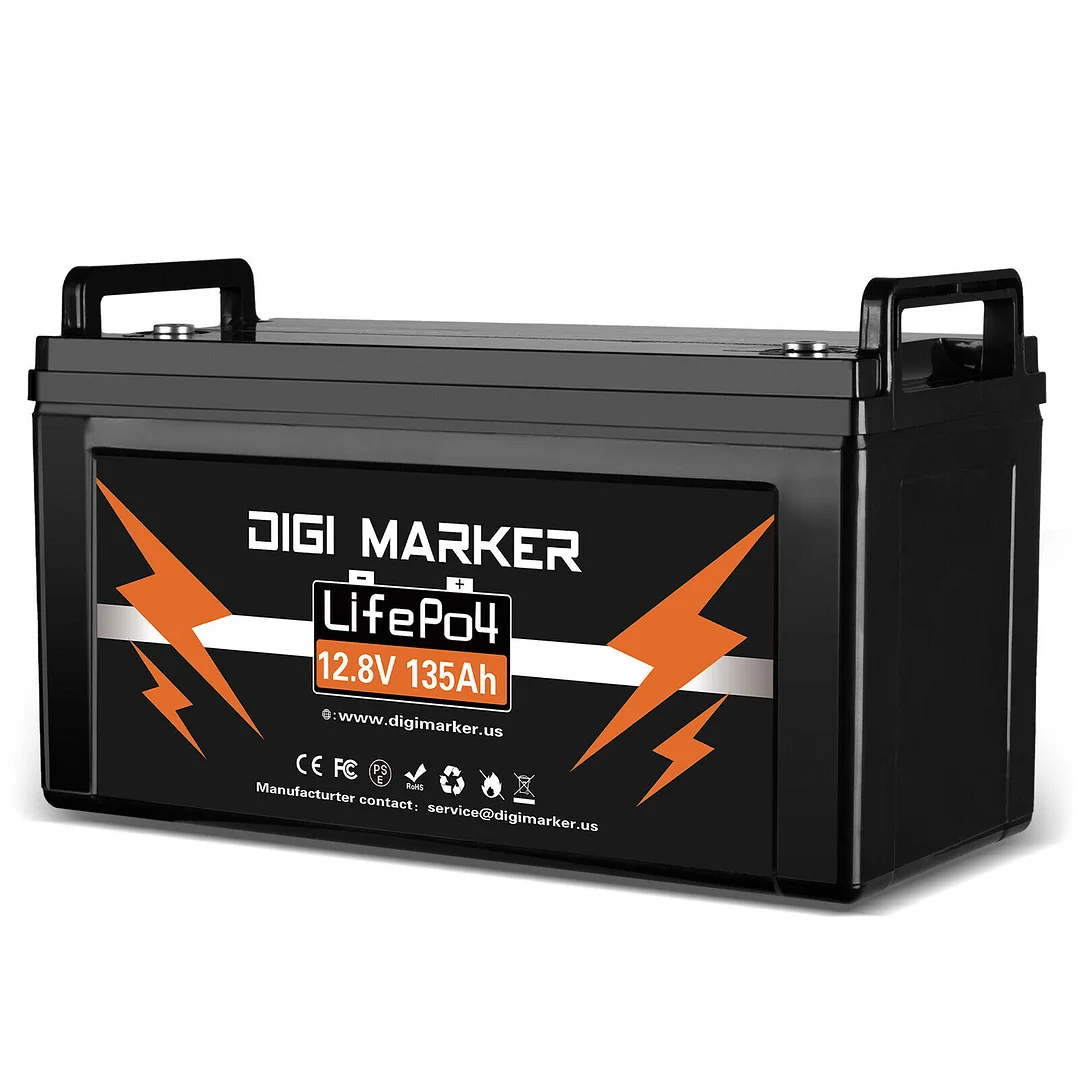

Our portable DIGI MARKER 12.8V 135Ah Lithium-Iron Phosphate Battery provides off-the-grid power supply for 4WD vehicles, caravans, campers, trailers, motor-homes, marine applications, and all 12.8V appliances including portable fridges and washers. The 135Ah 12.8V battery features an incredible cycle life of up to 4000 cycles, making it one of the most enduring in its class. What you get is a longer, consistent and more drawn out charge all the time. The integrated smart battery management system (BMS) not only protects this 12.8V 135Ah LiFePO4 battery from various abnormal conditions but monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. The maintenance-free deep cycle battery is completely sealed, spill-proof and does not leak gas for added safety and durable use. Lithium-Iron Phosphate battery is smaller and generally weights less than half of what comparable lead acid battery does. Less stress during installation, and less strain on wherever you end up installing it. Invest in this sealed, maintenance-free battery for your off-grid system today!

About our battery's BMS

The unique built-in battery management system (BMS) of our products lithium battery can protect it from overcharge, deep discharge, overload,overheating and short circuit, and low self-discharge rate. Our BMS has a high temperature disconnect function. When the internal temperature of the battery reaches 75℃ ( 167°F ) it will automatically disconnect to protect the battery. With overcharge and over discharge protection functions, when the overcharge voltage exceeds 15V or the over discharge voltage is lower than 8.8V, the battery will automatically disconnect. Our recommended charging voltage and discharging voltage are 14.6±0.2V and 10v±0.2V, respectively. If the charging voltage is lower than 13.8V, the battery power (with a deviation of 1-2°/o) cannot be fully charged.

About our battery's cell

Lithium-ion batteries have high energy density and high average output voltage, The self-discharge is small and there is no memory effect. The wide operating temperature range is -20℃ - 60℃. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. long lasting. It does not contain toxic and hazardous substances and is called a green battery."

About the parallel and series of our batteries

Our Lifepo4 batteries can be connected in parallels and in series for larger capacity and higher voltage.
We suggest that:
1.the Max connection in series is : 4 batteries to 48V
2.the Max connection in series/in parallels: Support 4 series and 4 parallel (in the case of simultaneous series and parallel connection)
3.the Max connection in parallels is(In the case of separate parallel connection, no series connection) : it can connect multiple batteries, and no more than 10 batteries in parallel.
Products of different manufacturers and different capacity batteries cannot be connected in series or in parallel . When the batteries are used in parallel or series, the voltage must be the same. It can support fast charging and solar panel charging.

SPECIFICATIONS

Nominal Capacity: 135Ah
Usable Capacity: 135Ah
Nominal Voltage: 12.8V
Energy: 1728Wh
Max.Load/Inverter Power 640W
Charge Voltage: 14.6V
Max. Continues Charge Current: 50A
Max. Continues Discharge current: 50A
Peak discharge current: 150A (Duration: less than 5 seconds)
Case Material ABS
Terminal Type M8
Cycle Life: 4000+ times
Dimension: L406xW174xH232mm
Weight: Approx.12.4kg/27.3lbs
Working Temperature:Range Charge: 0°C--50°C
Discharge: --20°C--60°C
Storage Temperature: -10°C--50°C

APPLICATION

  • Solar system + Wind Power system
  • Car Audio System
  • Emergency lighting equipment
  • Fire alarm and security systems
  • Telecommunication equipment
  • Electric equipment and telemeter equipment
  • Light equipment
  • Portable power tools measuring and medical equipment
  • Wireless lawn movers vacuum cleaner
  • Toys and consumer electronics
  • Portable video camera portable personal computer
  • Camper Trailer Caravan Camping Truck Bus RV etc.

FEATURES

  • Heavy duty case
  • Can be connected in parallel
  • Can be connected in series (up to 4)
  • Heavy duty Removable M8 Bolt Battery terminals
  • Over charge /discharge protection
  • Water proof: IP65
  • Built in battery management system for safety protection.
  • Battery management system enclosed, no extra wiring needed.
  • Built with LiFePO4 battery cells that are engineered to deliver superior performance & longevity.
  • Maintenance Free, Non Spill.
  • Perfect replacement or upgrade for a traditional lead-acid battery.
  • Connect in Series: Up to 4 identical batteries for up to 48V
NOTE

This battery does not have a low temperature heating function. Please do not charge the battery in a temperature lower than 0℃ to avoid damage to the battery.

1, Charging Temperature: 0℃ to 50℃
2, Discharge Temperature: -20℃ to 60℃
3, If it is a 4-string lithium iron battery pack, the charge protection voltage is 3.65v=14.6v, and the discharge protection voltage is 2.5V*4 = 10V.

How to charge the battery?

Scheme 1: You can use a lithium iron phosphate 4-string (14.6V) charger to charge the battery pack.
Scheme 2: You can use photo voltaic solar panerls to charge the battery through MPPT.
Scheme 3: You can use the inverter to charge the battery pack (note: the inverter needs a built-in AC to DC charging function).

About our brand

We are living in the times of energy within reach, which every step we take consumes energy. We keep strive to maintain a green life on the way of continuing to explore the new energy. DIGI MARKER has been making contribution to the green life with its 20 years professional technology of battery. we firmly believe in "Green Leads Life".

We are mainly engaged in LiFePO4 and lithium-ion battery business, focusing on the research and development, manufacturing, sales and marketing of new energy. Our production facilities have a total area of 120,000m. Our batteries cover a wide range of application areas from consumer electronics to energy storage and electric vehicles.

DIGI MARKER factory is equipped with the most advanced R&D team and equipment and has passed UL , CE , ROHS, WEEE and PSE quality system certification. Our batteries and products are fully satisfied with the requirements of high-end OEM industry market . We have quality assurance and inspection systems to control and ensure that all batteries are of high quality and comply with international standards and have the best performance and safety.

DIGI MARKER team has been committed to providing the best products and services for all customers, in order to provide a better low carbon life. With the leading technology, strong R&D ability and perfect sales network.

DIGI MARKER has become one of the well. Know battery manufacturers. We are also designated as an OEM business partner by a lot of famous brands and companies inf the world.



These batteries boast a proprietary lithium-iron-phosphate chemistry that takes the hassle out of maintaining and utilizing the power you need. Batteries are meant to be used when you need them and, if you need consistently, then, lead-acid batteries become too unreliable as well as high maintenance for repetitive long-term use (not to mention very costly). The lithium chemistry of these batteries are generally about 1/3rd the weight of traditional lead-acid batteries while still providing a massive boost to performance and capacity so you won't miss a single second of runtime. On average, one LiFePO4 Battery, can go through upwards of >2500 cycles while a Lead-Acid Battery can only do about 200-300. Not only do these special batteries outperform Lead-acid Batteries but they are also designed for more than just storing power effectively or for long periods, they are also immensely durable making them easy to use for a variety applications. These batteries are not only extremely efficient for home applications or backup power for your workplace but they preform extraordinarily well in off-grid or outdoor applications where trust, safety, and the environment temperature matter most.
