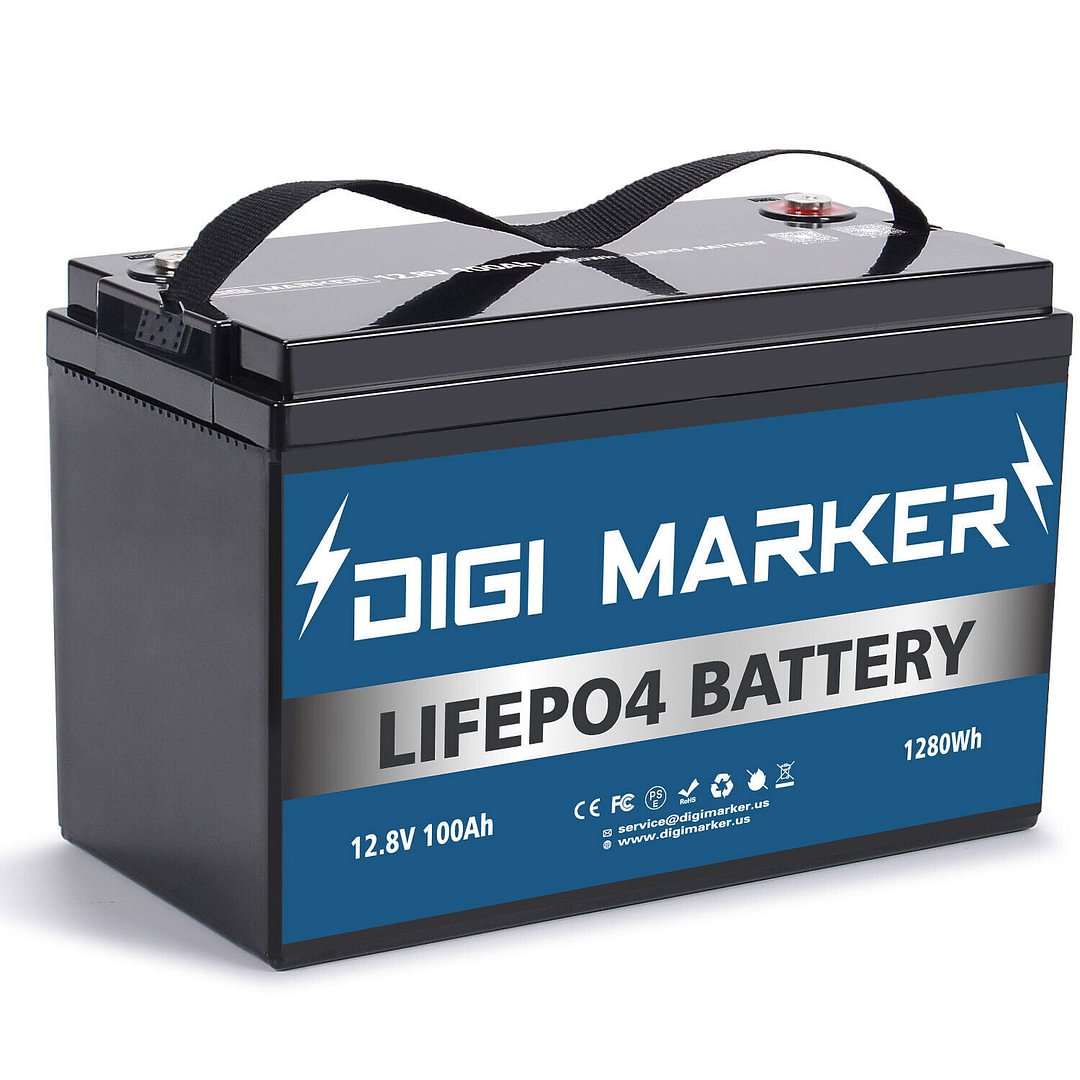

Our portable DIGI MARKER 12.8V 100Ah LiFePO4 Battery(With 100A BMS) Smart Built-in Bluetooth APP Control BMS Lithium-Iron Phosphate Battery provides off-the-grid power supply for 4WD vehicles, caravans, campers, trailers, motor-homes, marine applications, and all 12.8V appliances including portable fridges and washers. The 100Ah 12.8V battery features an incredible cycle life of up to 5000 cycles, making it one of the most enduring in its class. What you get is a longer, consistent and more drawn out charge all the time. The integrated smart battery management system (BMS) not only protects this 12.8V 100Ah LiFePO4 battery from various abnormal conditions but monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. The maintenance-free deep cycle battery is completely sealed, spill-proof and does not leak gas for added safety and durable use. Lithium-Iron Phosphate battery is smaller and generally weights less than half of what comparable lead acid battery does. Less stress during installation, and less strain on wherever you end up installing it. Invest in this sealed, maintenance-free battery for your off-grid system today!
About Blutooth Function:
Digimarker smart lithium iron battery has added Bluetooth function and obtain various data (SOC) of the lithium iron phosphate battery. Customers can connect to the battery through the mobile phone APP, and read the battery voltage, current, battery capacity and other important information at any time. Wireless connection range: within 5-10 meters from the battery. (There is a QR code in the manual to get the APP to control the battery)
About our Battery's BMS
The unique built-in battery management system (BMS) of our products lithium battery can protect it from overcharge, deep discharge, overload, overheating and short circuit, and low self-discharge rate. Our BMS has a high temperature disconnect function. When the internal temperature of the battery reaches 75℃ ( 167°F ) it will automatically disconnect to protect the battery. With overcharge and over discharge protection functions, when the overcharge voltage exceeds 15V or the over discharge voltage is lower than 8.8V, the battery will automatically disconnect. Our recommended charging voltage and discharging voltage are 14.6±0.2V and 10v±0.2V, respectively. If the charging voltage is lower than 13.8V, the battery power (with a deviation of 1-2%) cannot be fully charged.
About our Battery's cell
Lithium-ion batteries have high energy density and high average output voltage, The self-discharge is small and there is no memory effect. The wide operating temperature range is -20℃ - 60℃. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power, long service life. It does not contain toxic and hazardous substances and is called a green battery.
About the parallel and series of our Batteries
We suggest that:
1. The Max connection in series is: 4 Batteries to 48V
2. The Max connection in series/in parallels: Support 4 series and 4 parallel (in the case of simultaneous series and parallel connection)
3. The Max connection in parallels is (In the case of separate parallel connection, no series connection): it can connect multiple batteries, and no more than 10 batteries in parallel.
Products of different manufacturers and different capacity batteries cannot be connected in series or in parallel. When the batteries are used in parallel or series, the voltage must be the same. It can support fast charging and solar panel charging.
|Discharge cut-off voltage:||10V|
|Max. Continues Charge Current:||100A|
|Max. Continues Discharge current:||100A|
|Peak discharge current:||300A (Duration: less than 5 seconds)|
|Cycle Life:||4000 - 5000 times|
|Working Temperature:Range Charge:||0°C - 50°C|
|Discharge:||-20°C - 60°C|
|Storage Temperature:||-10°C - 50°C|
|Solar system + Wind Power system|
|Car Audio System|
|Emergency lighting equipment|
|Fire alarm and security systems|
|Electric equipment and telemeter equipment|
|Portable power tools measuring and medical equipment|
|Wireless lawn movers vacuum cleaner|
|Toys and consumer electronics|
|Portable video camera portable personal computer|
|Camper Trailer Caravan Camping Truck Bus RV etc.|
|Smart Bluetooth APP Control|
|Heavy duty case|
|Can be connected in parallel|
|Can be connected in series (up to 4)|
|Heavy duty Removable M8 Bolt Battery terminals|
|Over charge/discharge protection|
|Water proof: IP65|
|Built in Battery management system for safety protection.|
|Battery management system enclosed, no extra wiring needed.|
|Built with LiFePO4 Battery cells that are engineered to deliver superior performance&longevity.|
|Maintenance Free, Non Spill.|
|Perfect replacement or upgrade for a traditional lead-acid battery.|
|Connect in Series: Up to 4 identical Batteries for up to 48V|
This 12V Deep Cycle Marine Battery does not have a low temperature heating function. Please do not charge the battery in a temperature lower than 32°F (0℃) to avoid damage to the battery.
1, Charging Temperature: 32°F（0℃ ) to 122°F (50 ℃).
2, Discharge Temperature: -4°F ( -20 ℃ ) to 140°F ( 60 ℃ )
3, If it is a 4-string lithium iron battery pack, the charge protection voltage is 3.65v=14.6v, and the discharge protection voltage is 2.5V*4 = 10V.
How to charge the Battery?
Scheme 1: You can use a lithium iron phosphate battery 4-string (14.6V) charger to charge the battery pack.
Scheme 2: You can use photo voltaic solar panels to charge the battery through MPPT.
Scheme 3: You can use the inverter to charge the battery pack (note: the inverter needs a built-in AC to DC charging function)
